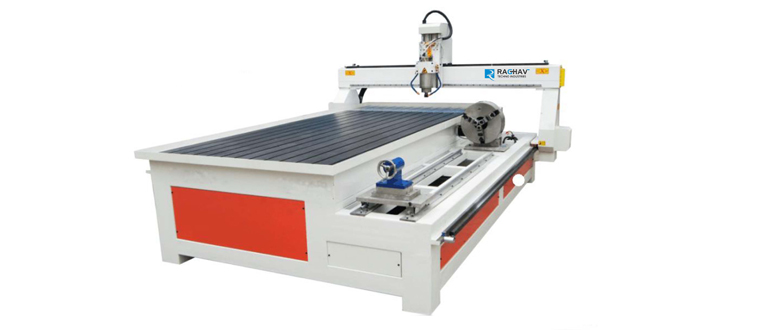

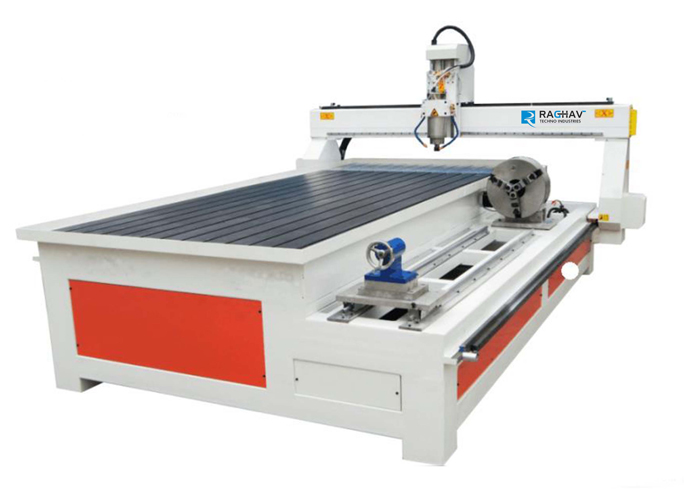

CNC Router Engraving Machine

CNC Router Engraving Machine

With our efficiency and technical knowledge, we are engaged in offering a comprehensive assortment CNC Engraving & Router Machine. The offered machines are manufactured by our brilliant workforce & adroit professionals using advanced technology and supreme grade components to ensure flawless supplies from our end. In addition to this, our offered products are highly praised by our clients for their optimum quality & cost-effectiveness. Clients can avail these machines from us at economical prices.

Salient Features
  • Equipped with 6 KW high power HSD spindle motor from Italy
  • Original Italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time
  • Adopting AC high power supply driver
  • Rust resistance
  • All axis in Microstep Driver & Motor motion speed can be up to 25m/min
  • Adopting advanced NCstudio Control System
  • Compatible with TYPE3/Artcam/Proe/UG and other international CAD/CAM software
  • Own functions of restoring from power off and saving from break point, anticipating working time
  • Adopting international advanced HIWIN Linear Guideways with high precision ,GERMANY Rack and pinion
  • Configured with industrial structure to ensure the high precision and durability
  • Optimization of mechanical and electrical design and independent electrical controlling cabinet to ensure the system stable,safe and maintenance convenient.
  • High position accuracy, heavy work load and long life is ensured by HIWIN brand square linear guideways
  • Axis Drive System : X, Y - Rack, Z - Ball Screw
  • Working table is covered with rigid PVC sheet for long life of aluminum T-Slot table
Application Fields

Applicable to process on advertinsing plate, acrlic, plastic, sucking mould and wood products in high efficiency handicraft cutting or 3D engraving, various sign boards, metal foil mould, construction models.

Materials useable in CNC Machines
  • Wood
  • Brass
  • Aluminum
  • Aluminum Composite Panel
  • Acrylic
  • Plastic
  • Rubber
  • Synthetic Stones (Artificial Marbles)
  • Backlit Hylam
  • Foam Board
  • Sandwich Plastic Sheet
  • And Many more
Applications Used in Wooden Industries
  • Wooden Carving
  • Wooden Door Manufacturers
  • Wooden Moduler Furniture Manufacturers
  • Wooden Pattern Workers
  • Wooden Handicarft
  • Wooden Sculpture
  • Speaker and Audio Manufacturers

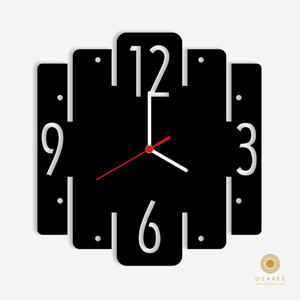

  • Wooden Clock Manufacturers
  • Wooden Bajoth
  • Plywood Manufacturers
  • Wooden Container
  • Wooden Temple Manufacturers
  • Wooden Molding Patti Manufacturers
  • Textile Machines parts of Wooden Manufacturers
  • Electric Board (High Lame) Manufacturers
  • Decorator
  • Wooden Jewellery Box Manufacturers
  • Wooden Pallet Manufacturers
  • Wooden Brush Handle Manufacturers
  • Wooden Office Stationary Manufacturers
Applications Used in Signage Industries
  • Signboard Manufacturers
  • Indoor Signage
  • Door Signage
  • Name Plate Manfacturers
  • Trohy/Awards Articles Manufacturers

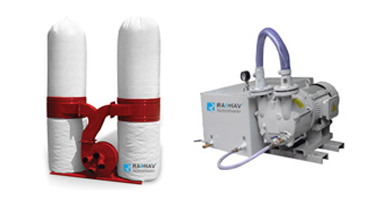

Optional Items
  • Dust Collecting system
  • Vacuum Bed System
  • Servo System
  • DSP & FPGA Controlling system
  • Automatic Oil Lubrication system

Technical Specifications
MODEL RT1325 / RT1325V
Spindle Motor HSD 6KW air-cooled spindle motor from Italy
Motion Speed 25000 mm/min
Rotating Speed of spindle 0-18000 rpm
Engraving Tool 3.175, 4, 6, 12.7 mm
Dictate Format HPGL, G-code
Resolution 0.025mm
